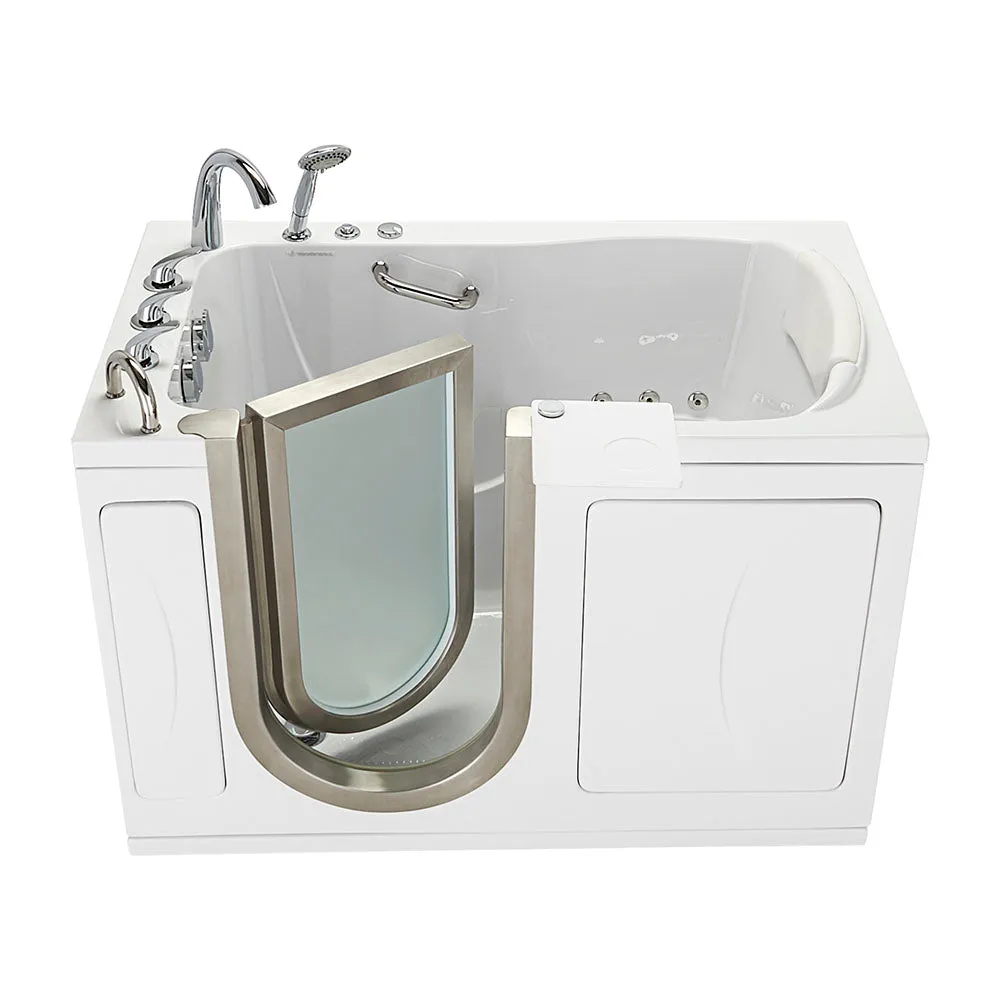

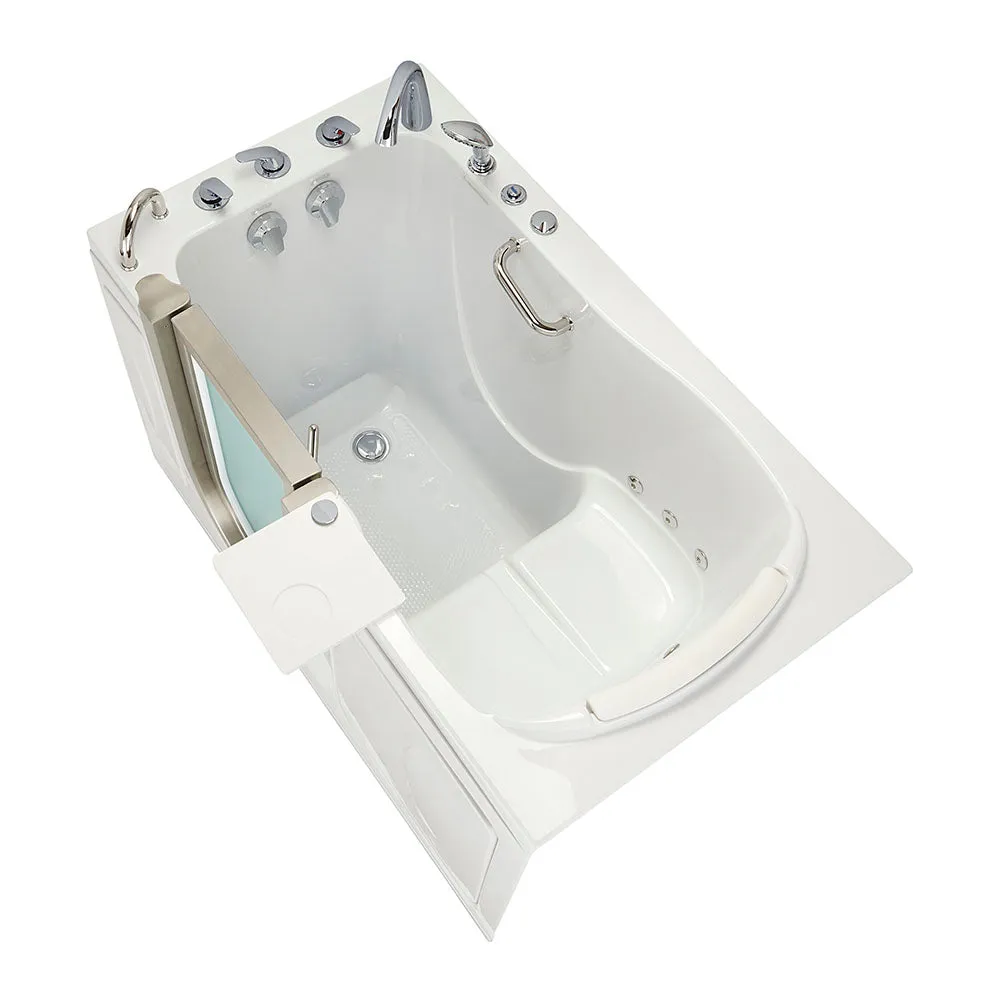

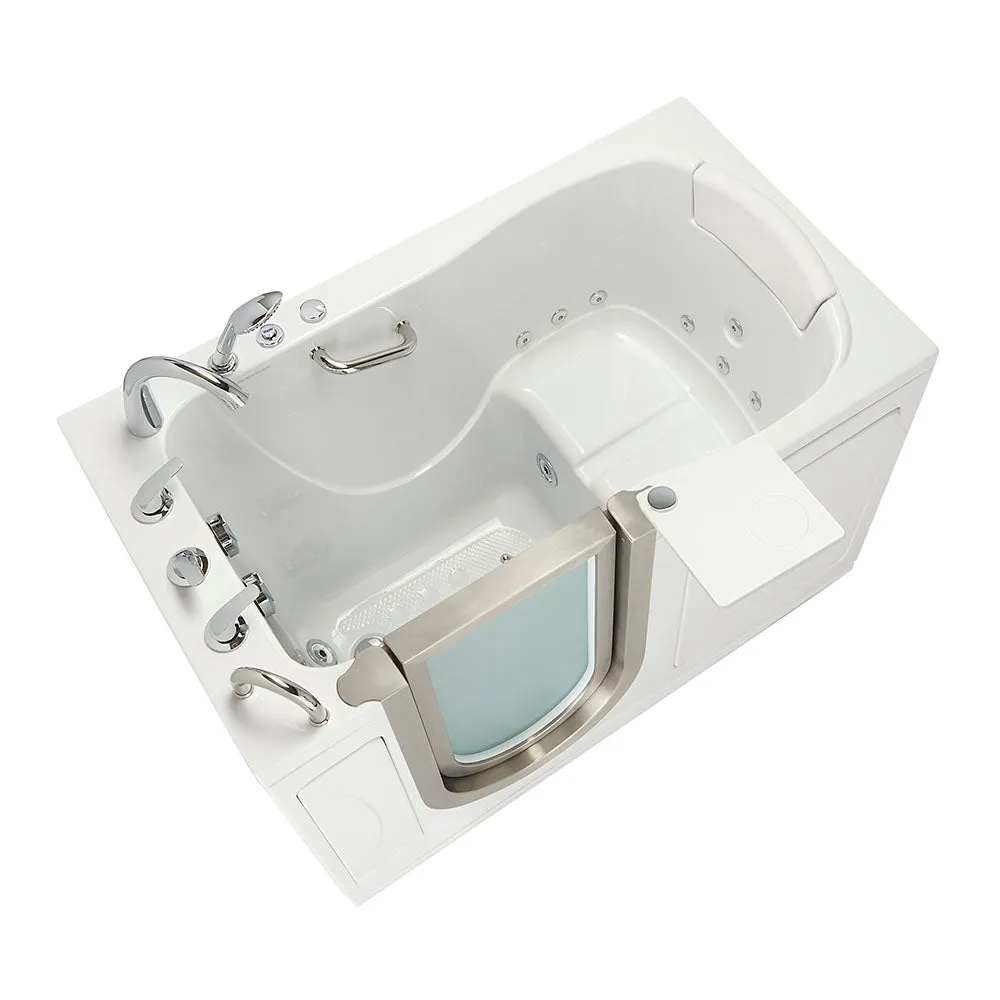

Ella Acrylic Walk-in Tubs are vacuum formed from a solid, long-lasting acrylic sheet. Under the acrylic shell facade is a rust proof, stainless steel frame reinforced with multiple fiberglass mesh and gelcoat layers to ensure the durability of the tub’s structure. The Elite’s main feature is the door made from a custom brushed stainless steel and a frosted tempered glass window to give a sleek, contemporary look. The door swings into the bathtub to allow the bather to enter/exit the tub. The lever lock creates a secure and watertight door seal.

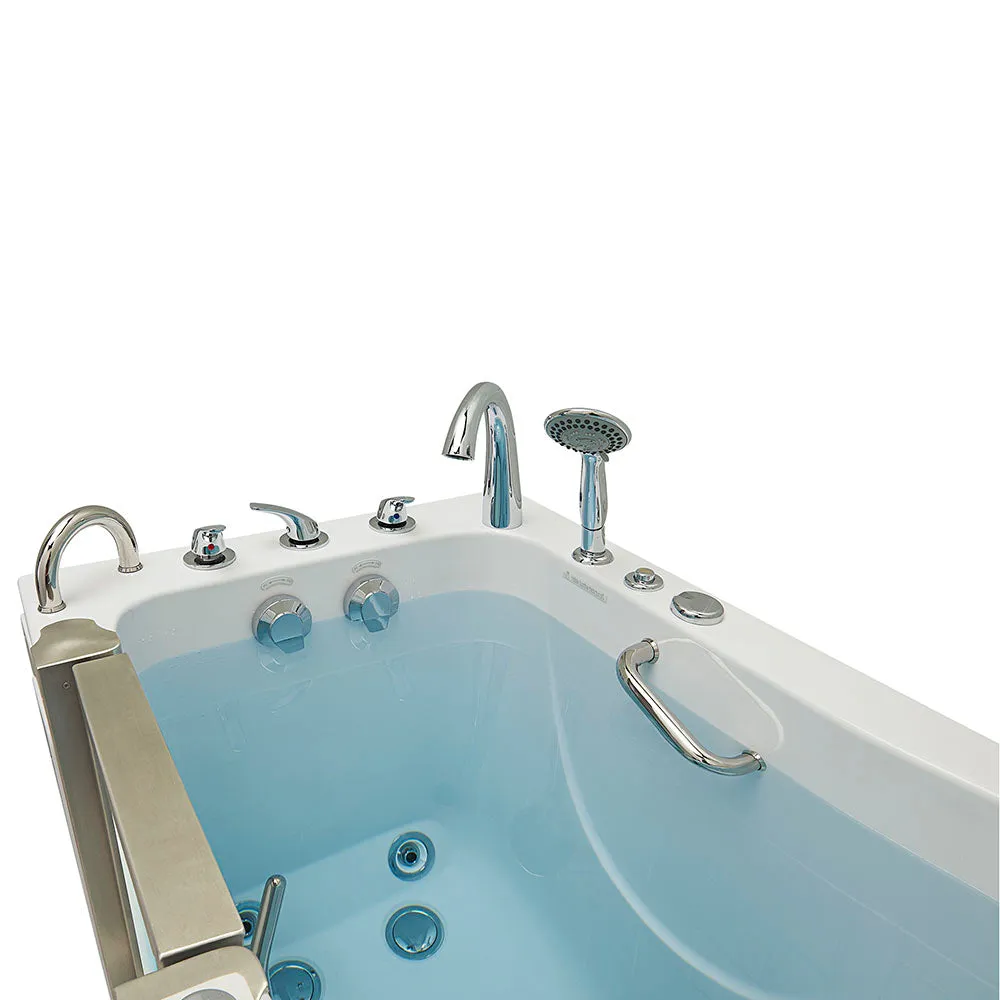

The 5-Piece fast-fill faucet has 5 pieces: two temperature levers, a diverter lever, a mounted faucet and a pull out multi-functional hand shower. The hot or cold lever controls the temperature of the water. The third lever can divert the water between the mounted faucet and handshower. It has a fill rate of 18 GPM, based on plumbing conditions. The Elite comes with Ella's unique Dual Drain Technology consisting of two 2” gravity driven drains with four 2” outlets, 2 overflows and 2 openers, allowing a fast, reliable drain.

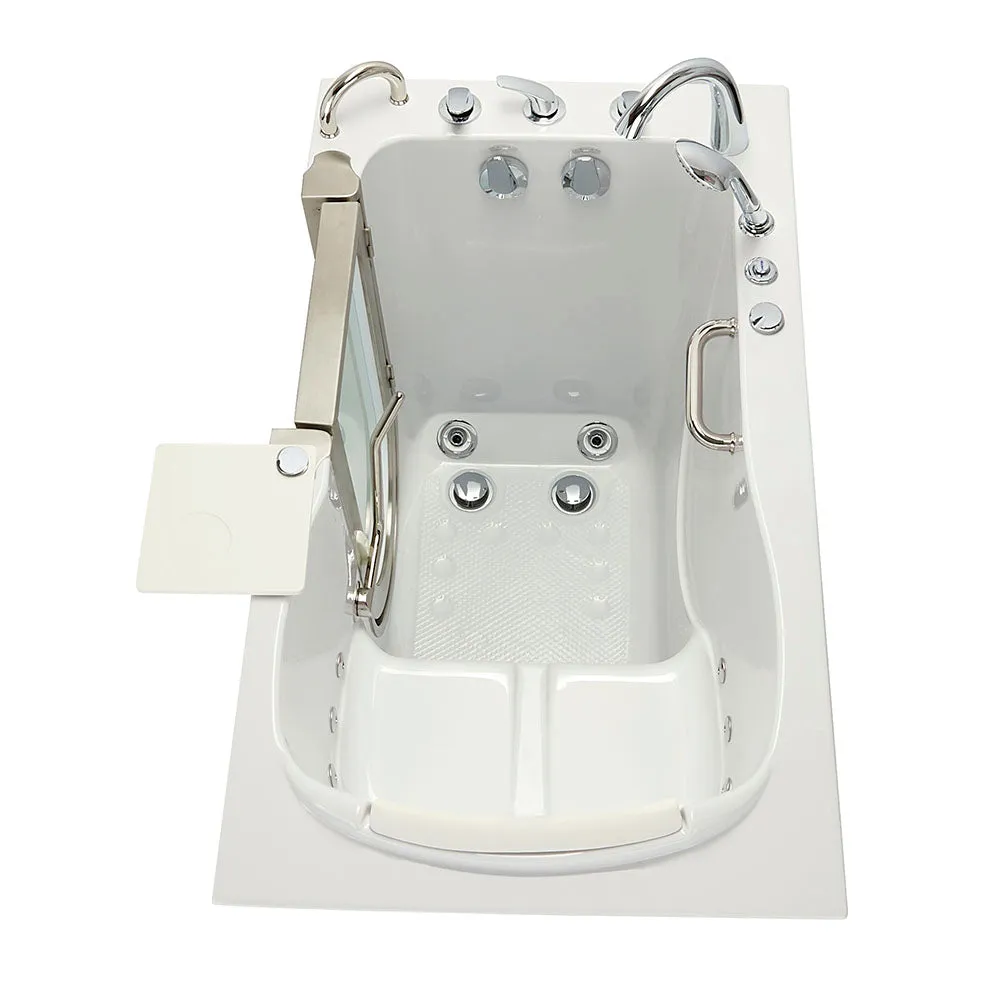

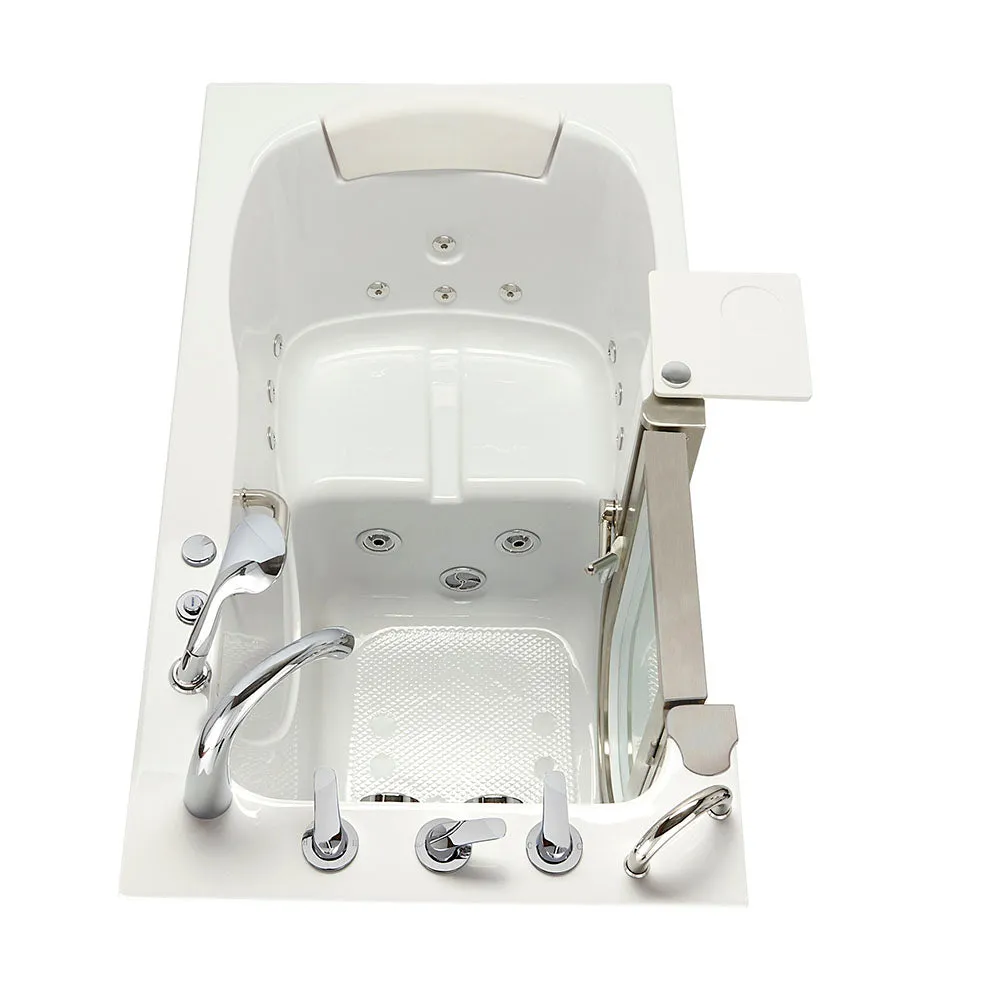

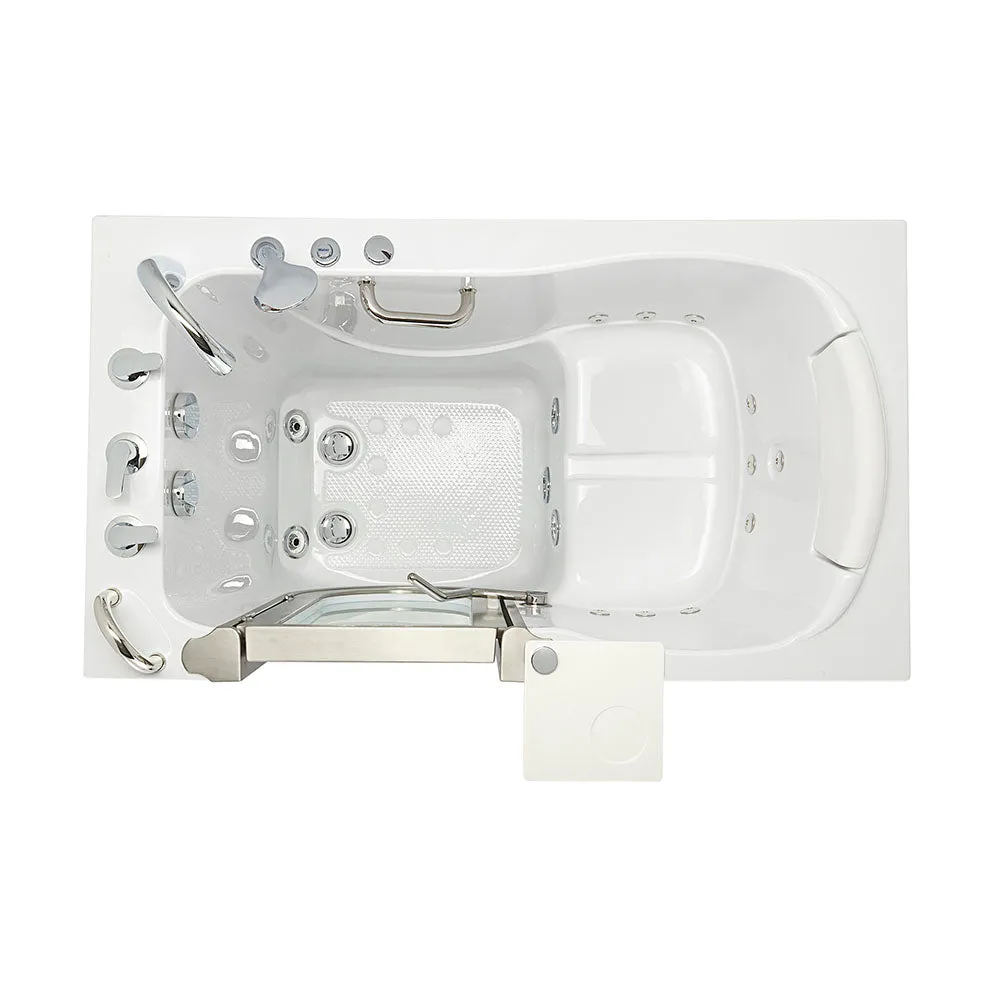

The Hydro Massage System includes: a hydro pump with an in-line water heater, eco-friendly ozone sterilization system, hydro massage intensity dial control, and strategically positioned hydro jet system for targeted and effective massaging. The in-line water heater helps maintain the water temperature at constant level while bathing. The in-line water heater and ozone sterilization automatically engage when the hydro massage is turned on. The Elite has 14 strategically placed hydro jets. 10 upper fixed jets work to provide relief to your back, hips and thighs, while 4 lower adjustable jets massage your feet and calves. 2 of these lower jets were placed on the floor of the tub to maximize the enjoyment of a foot massage. Our patented 360° swivel tray allows customers to place anything from a drink to a book for convenient use while bathing.

• Dual Drain Technology features 2 individually controlled 2 in. drains with easy to turn levers. 4 2” outlets allow for the fastest gravity driven drain in the industry.
• Hydro massage comes with 10 fixed and 4 adjustable jets. Includes an intensity dial control, in-line water heater, and ozone sterilization to clean the system and water.
• Ella 5 Piece Fast-Fill Faucet fills up to 18GPM and has a mounted faucet, pull out multi-functional hand shower, temperature and diverter levers in chrome finish with two 5’ long supply lines.
• Tub features a 21.75” wide seat.

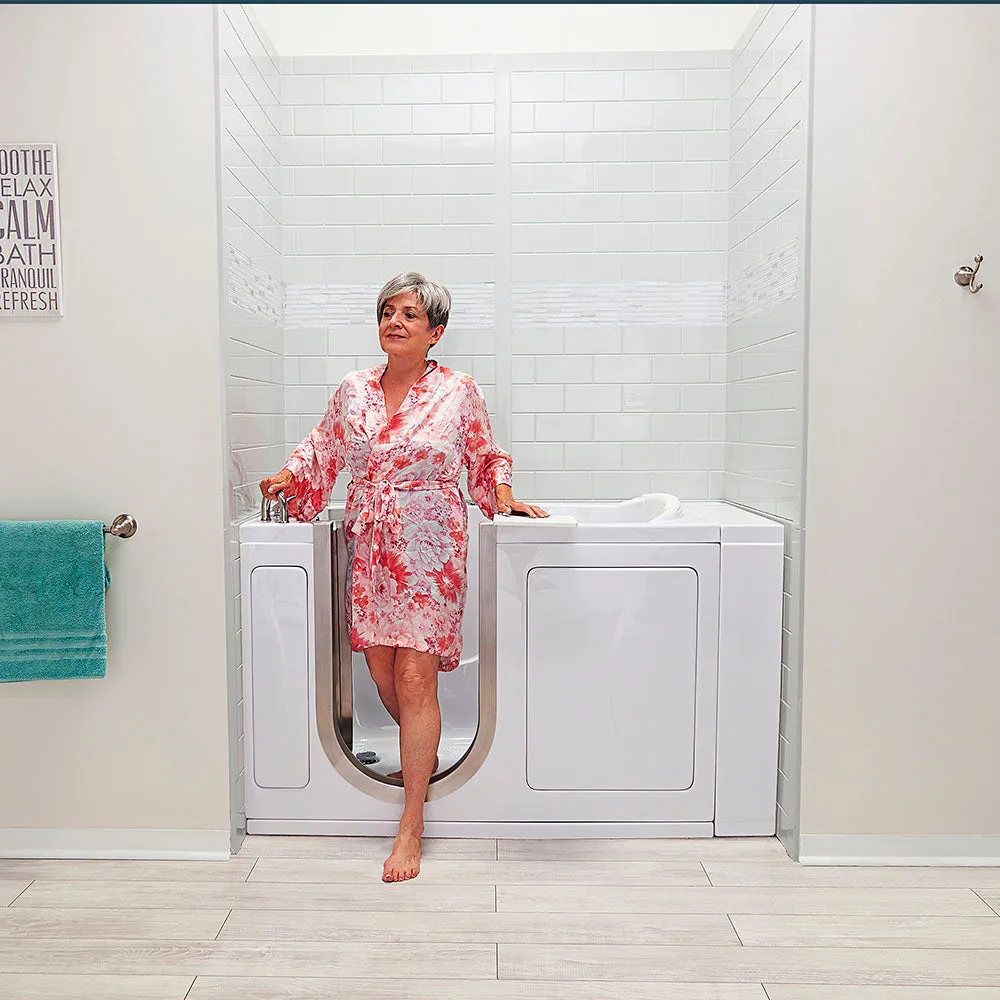

• Brushed stainless steel and frosted tempered glass door with an extended lever lock.
• Left side inward swing door .
• Low step-in 6 in. threshold and a textured slip resistant floor. Removable toe kick access panel allows a lower threshold.

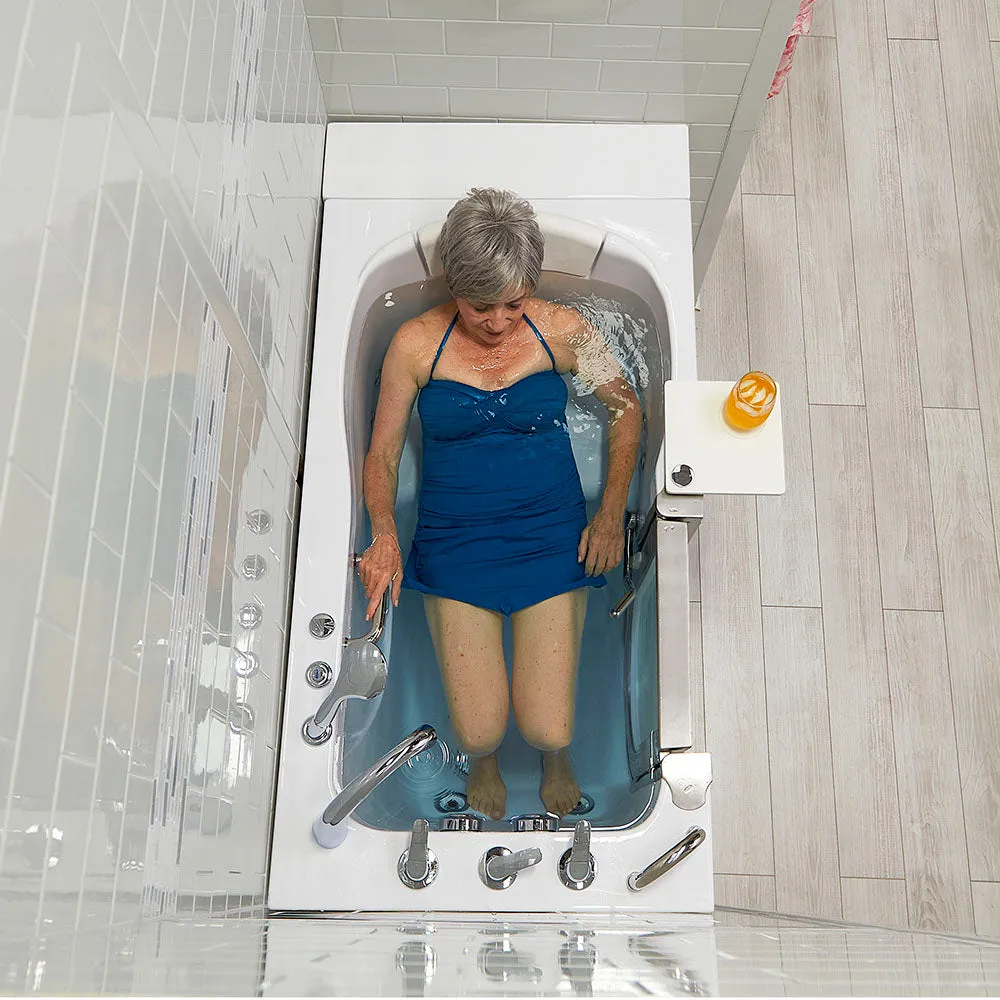

• 360° swivel tray can hold your beverage or valuables while you bathe.
• Detachable wide backrest for comfortable back support.
• 2 stainless steel grab bars.
• Includes 2 overflows, two 5 ft. incoming supply lines and 2 drain elbows.
• Rugged stainless steel frame which distributes weight over adjustable leveling legs.
• By utilizing the wall extension kit and the end access panel(s), your Ella walk-in bath can easily be installed into a 2 or 3-wall setting and even has the capability to be a freestanding unit so it retro-fits into almost any existing bathroom.
• Limited lifetime warranty*
• Size: 29.75 in. x 52.25 in. x 38 in. (fits standard 60 in. opening with extension panel)
• Cast acrylic high gloss finish easy to clean shell, fiberglass gel-coat reinforced.
